Creative urban living residential building plans.

PLAN UL-9

SIDE ELEVATION View of Secondary Entrance	REAR VIEW View of Rear & Entrance	View from the Street View of Front & Main Entrance

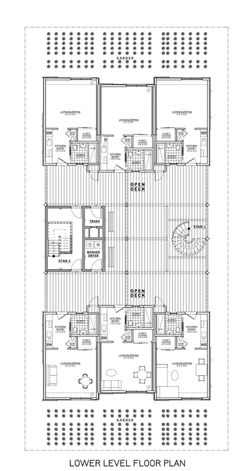

View of Open Terraces @ Main Entry Close View of Entry Terraces	LOWER LEVEL FLOOR PLAN Six (6) unit, H.C. accessible, 425 s.f. convertible apartments.	MIDDLE LEVEL FLOOR PLAN Middle Level Plan. Six (6) unit, 425 s.f. convertible apartments.
UPPER LEVEL FLOOR PLAN Upper Level Plan. Six (6) unit, 425 s.f. convertible apartments.	EVENNG FROM THE STREET View from Street	Rear View at evening View from Street
Evening View of Open Terraces Close View of Entry Terraces

18 unit "micro" apartment building designed for single occupancy. All units are a minimum of 425 s.f., with full kitchen, bath and in-unit storage. The open plan, "convertible" design is ideal for modular bedding/furniture layouts. Expanded window units afford generous natural light and ventilation. Front and rear yards can offer 1400 s.f. , 18 plots of garden space. Central garbage chutes and laundry facilities are on each floor.

This "micro" multi-family design is ideal for the real estate investor or public agency interested in providing contemporary, efficiently designed housing a burgeoning urban housing market. Each unit can be separately metered & controlled water, hvac and utilities or use a central system. Designed for an urban setting where off street parking is not required.

Building materials are common concrete block, stucco and metal panelling. The plan uses "Green Building" applications and is designed to maximize energy efficiency with the using ICF insulated structural, exterior walls, energy efficient windows and roofing systems.
